Doppler Radar: How It Works And Why It Is Essential For Modern Meteorology

Doppler radar stands as one of the most critical technological advancements in meteorological science and aviation safety. By utilizing the Doppler effect—the change in frequency of a wave in relation to an observer—this system allows meteorologists to detect not just the location of precipitation, but its speed and direction. Understanding this technology is fundamental for anyone interested in weather patterns, emergency preparedness, or aviation navigation.

The Physics Behind Doppler Radar: The Doppler Effect

At its core, Doppler radar operates by emitting electromagnetic pulses toward moving targets, such as raindrops, snowflakes, or hail. When these pulses strike a moving object, the reflected signal changes in frequency. If the target is moving toward the radar, the returning waves are compressed, resulting in a higher frequency. Conversely, if the target is moving away, the waves stretch, resulting in a lower frequency.

Meteorologists represent this movement using two primary displays: reflectivity and radial velocity. Reflectivity tells us the intensity of the precipitation—how much water or ice is in the air. Radial velocity, however, is where the "Doppler" aspect shines. It maps the movement of these particles, allowing forecasters to see rotation within a storm, which is the primary indicator of potential tornadoes or severe microbursts.

The precision of modern systems, such as the NEXRAD (Next-Generation Radar) network, relies on sophisticated signal processing. By filtering out "ground clutter"—signals bouncing off buildings, trees, or mountains—the radar software isolates only the atmospheric phenomena. This high-resolution data is what gives authorities those vital extra minutes of lead time during severe weather events.

Key Differences: Weather Surveillance vs. Aviation Radar

While the general principle of the Doppler effect remains the same, the application of the technology varies significantly depending on whether it is used for weather forecasting or aviation. Weather radar focuses on detecting moisture and wind patterns, whereas aviation radar is designed primarily to track the physical location and velocity of aircraft.

In aviation, Doppler radar serves a dual purpose. It provides Terminal Doppler Weather Radar (TDWR) data to identify hazardous wind shear near runways, which can be catastrophic for landing or taking off aircraft. Simultaneously, air traffic control radars use similar frequency shifts to maintain safe separation between planes.

Comparison Table: Weather vs. Aviation Doppler Radar

Advantages and Limitations of Doppler Technology

The primary advantage of Doppler radar is its ability to see "inside" a storm. Before the widespread adoption of Doppler technology, meteorologists relied on basic intensity radar, which could tell them where rain was falling but not if the wind was rotating. Doppler provides the critical velocity data required to issue life-saving tornado warnings well before a funnel cloud touches the ground.

However, the technology is not without its limitations. One major drawback is the "cone of silence." Because the radar beam is emitted from a fixed tower and pointed slightly upward to avoid ground interference, the area directly above the radar station is often blind. If a storm passes directly over the station, the radar may struggle to detect low-level rotation.

Another issue is beam blockage. In mountainous terrain, physical obstructions can cast a "shadow," preventing the radar beam from reaching distant valleys. Furthermore, extreme precipitation can sometimes cause signal attenuation, where the energy of the pulse is absorbed by heavy rain near the radar, causing it to underestimate the intensity of storms located further out.

How to Interpret Doppler Imagery

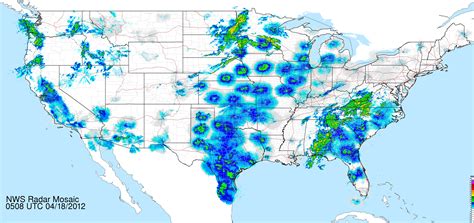

For the average user, looking at a raw Doppler feed can be confusing. To get the most out of these tools, you must learn to toggle between "Reflectivity" and "Velocity" modes. Reflectivity is usually color-coded from light blues (light rain) to deep purples or pinks (hail or heavy rain). When you see a "hook echo" pattern on a reflectivity map, that is a high-confidence indicator of a mesocyclone capable of producing a tornado.

Velocity maps are usually represented by a color split, often red and green. By convention, green indicates motion toward the radar, while red indicates motion away. If you see a tight cluster where red and green are touching or overlapping, it suggests strong rotation. This is the "couplet" that trained storm spotters look for to confirm a dangerous vortex.

When using mobile weather apps, always check if the data is "Base Reflectivity" or "Composite Reflectivity." Composite data shows the highest intensity of the storm regardless of altitude, which is excellent for spotting hail cores, but it may hide the low-level wind features that actually cause surface damage.

The Intersection: Doppler Radar in Medical Imaging

While the term is almost exclusively associated with meteorology and aviation, "Doppler" is also a critical term in the medical field. Medical Doppler ultrasound uses the exact same physical principle—the Doppler effect—to measure blood flow through vessels. Instead of radio waves bouncing off raindrops, medical technicians use sound waves bouncing off red blood cells.

This application is vital in cardiology and vascular surgery. By measuring the frequency shift of the sound waves returning from moving blood cells, doctors can determine the speed and direction of blood flow in real-time. This helps in diagnosing blocked arteries, measuring valve functionality in the heart, and ensuring proper fetal circulation during pregnancy. If you find yourself searching for "Doppler radar" expecting information on a heart scan, it is important to clarify that you are looking for a Doppler Ultrasound, as the two technologies, while sharing the same underlying physics, operate in vastly different environments.

Frequently Asked Questions (FAQ)

1. Can Doppler radar see through mountains? No, Doppler radar is a line-of-sight technology. If a mountain blocks the radar beam, the area behind the mountain will appear as a blind spot or "shadow" on the map.

2. Is Doppler radar dangerous to my health? No. Weather radar uses non-ionizing electromagnetic radiation at very low power densities by the time it reaches the general public. It has no impact on human health.

3. Why is my weather app showing a storm that isn't raining? This can occur due to "anomalous propagation," where atmospheric temperature inversions bend the radar beam toward the ground, causing it to pick up non-weather targets like trees, birds, or buildings, which are then misinterpreted as rain.

4. What is the difference between a tornado watch and a tornado warning in relation to radar? A "watch" means conditions are favorable for storms that the radar might detect, while a "warning" means that the radar (or a spotter) has physically confirmed rotation or a tornado on the ground.

5. How far can Doppler radar reach? Most operational weather radars have a maximum effective range of about 250 miles, though the quality of the data degrades with distance due to the earth's curvature and the spreading of the radar beam.

Stay Ahead of the Weather

Understanding how Doppler radar works allows you to make informed decisions during severe weather events rather than relying solely on generic alerts. By monitoring local velocity products and staying updated with official NWS alerts, you can protect your family and property. If you live in an area prone to severe weather, consider installing a professional-grade weather tracking app that provides real-time access to radar velocity data.
